The time constant concept

 The name refers to the time constant an RC element must possess to attain the relevant frequency characteristic.

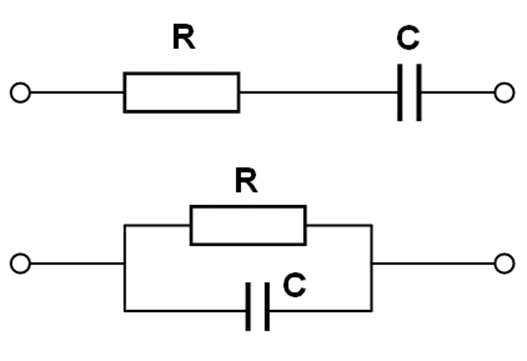

Caption: RC circuits.

The time constant can be expressed as follows:
t  =     R × C
where
t    =    Time constant [s]
R    =    Resistance [W]
C    =    Capacitance [F]

or:
t    =    1 / 2×p×f0
where:
t   =     Time constant [s]
f0    =     Corner frequency of the emphasis circuit (the 3 dB point).

The filter is a first-order type, i.e. the slope of the inclined part of the curve is 6 dB/octave.

A number of standardized time constant-based pre-/de-emphasis techniques are used, some in transmission techniques and others in tape recording.

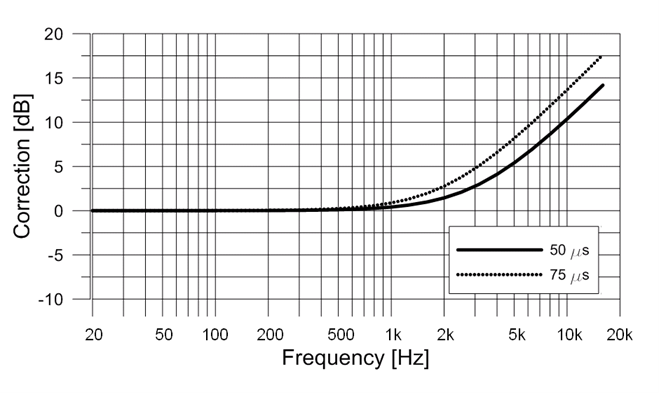

 Caption: The frequency responses of 50/75 µs (pre-)emphasis.

Some of the most frequently used time constants are listed here, along with the corresponding corner frequencies:

Time constant [ms]

Frequency [Hz]

17.5

9094.57 » 9100

35

4547.57 » 4550

50

3183.10 » 3180

70

2273.64 » 2275

75

2122.01 » 2120

90

1768.39 » 1770

120

1326.29 » 1325

318

505.00 » 500

3180

50.50 » 50
